The G5RV antenna is a popular choice among amateur radio operators due to its versatility, ease of construction, and perfor
mance across multiple bands. In this blog post, we’ll explore its construction, advantages, disadvantages, average pricing, durability, and more.
The G5RV is a type of multiband dipole antenna designed for use in amateur radio. It was developed by French radio amateur Louis Varney (call sign G5RV) in the 1940s. The antenna is particularly well-suited for the HF (High Frequency) bands, making it a staple for many ham operators.
What is the G5RV Antenna?
The G5RV is a type of multiband dipole antenna designed for use in amateur radio. It was developed by French radio amateur Louis Varney (call sign G5RV) in the 1940s. The antenna is particularly well-suited for the HF (High Frequency) bands, making it a staple for many ham operators.

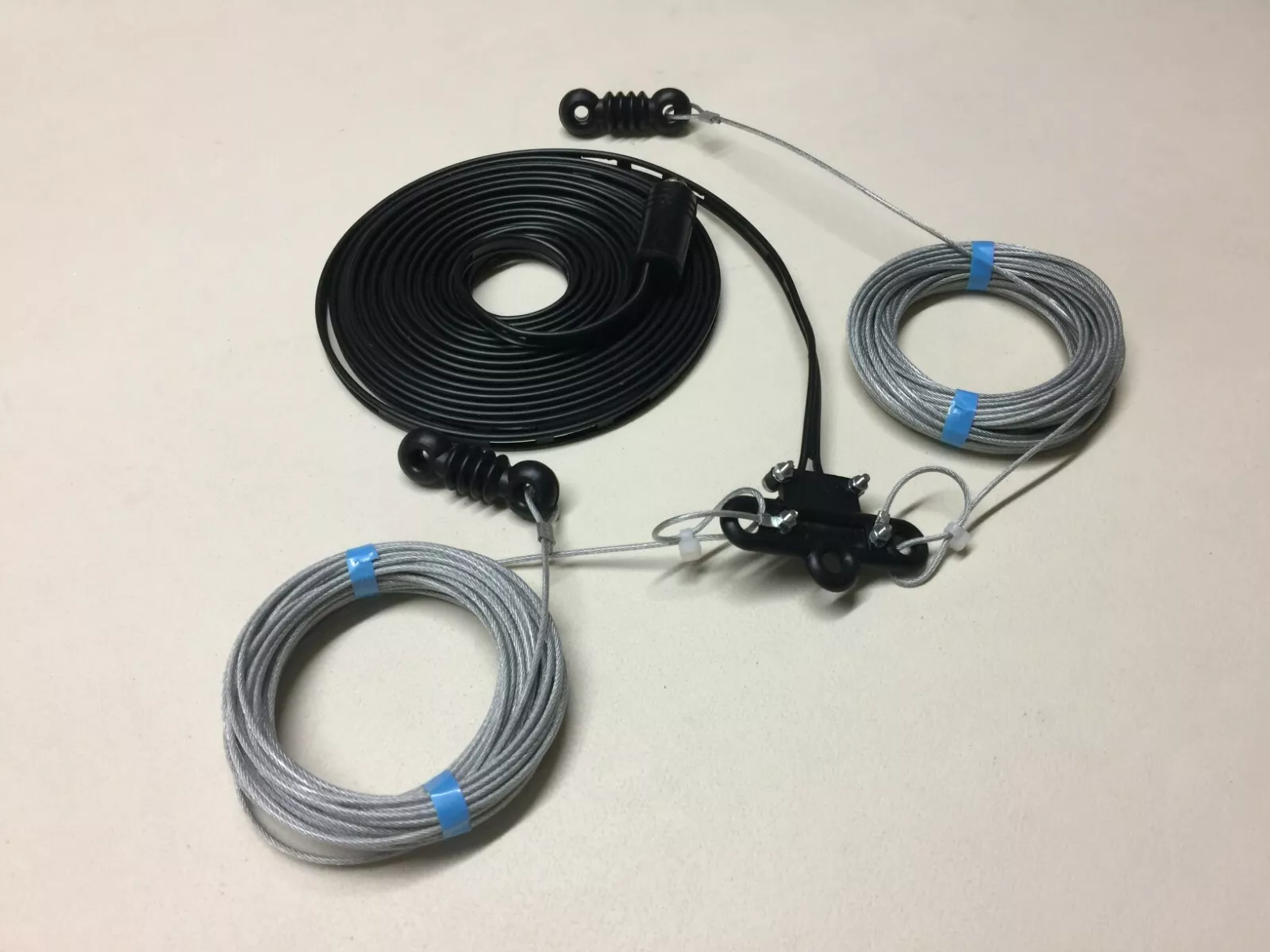

Construction of the G5RV Antenna
The G5RV antenna is relatively straightforward to construct. Here are the key components:- Length: The standard G5RV design is approximately 102 feet (31 meters) long. This length is optimized for use on the 20-meter band but can also work on other bands with some compromises.
- Wire: The antenna is typically made from 14 or 16-gauge copper wire. This gauge is durable enough for outdoor use while providing good conductivity.
- Center Feed Point: The antenna has a center feed point where it connects to the radio. This is usually done with a balanced feed line, such as 450-ohm ladder line or 300-ohm twin-lead.
- Antenna Tuner: While the G5RV can be used without an antenna tuner, using one can help optimize performance across the various bands.
- Support Structure: The antenna needs to be suspended between two supports, such as trees or poles, at a height of at least 10 to 20 feet above the ground for optimal performance.
Pros of the G5RV Antenna
- Multiband Operation: One of the main advantages of the G5RV is its ability to operate on multiple HF bands (typically 20m, 40m, and 80m), making it versatile for different communication needs.
- Simplicity and Cost: The G5RV is relatively easy and inexpensive to build, making it accessible for beginners and those on a budget.
- Good Performance: With proper installation and an antenna tuner, the G5RV can provide good performance, especially on the 20-meter band.
- Compact Size: Compared to other antennas, the G5RV is compact and can fit in smaller backyards, making it suitable for urban environments.
Cons of the G5RV Antenna
- Limited Bandwidth: While it performs well on several bands, the G5RV has limited bandwidth, which can affect performance on certain frequencies without an antenna tuner.
- Directional Characteristics: The G5RV has a somewhat omnidirectional pattern, which may not be ideal for all communication needs, especially if you require more focused gain in a specific direction.
- Height Dependency: The performance of the G5RV is greatly affected by its height above ground. Lower installations can lead to increased ground losses and reduced efficiency.
Average Price
The cost of constructing a G5RV antenna can vary based on materials and whether you choose to buy a pre-made version or build it yourself. Here’s a rough breakdown:- DIY Construction: If you build it yourself, the total cost for wire, insulators, and feed line can range from $50 to $100.
- Pre-made Antenna: Commercially available G5RV antennas can range from $100 to $200, depending on quality and brand.
Durability
The durability of the G5RV antenna largely depends on the materials used and the environment in which it is installed. Generally:- Wire Material: Copper wire is resistant to corrosion, but if exposed to harsh weather conditions, it may need periodic maintenance or replacement.
- Insulators and Hardware: Using high-quality insulators and hardware will enhance the antenna’s longevity.
- Weather Resistance: The antenna should be installed in a way that minimizes stress from wind and other environmental factors. Regular inspections and maintenance can help ensure durability.
